OB-00RXD0-00
Specification
| LED | 5730 SMD LED (60-65 LM/LED) |
| LED Quantity | 30 LEDs/m |
| Lumen (LM/M) | 1000-1200 |
| Voltage | 12V DC / 24V DC |
| Power Consumption | 9W/m |
| PCB Width | 10 mm |
| RA | CRI 80 / CRI 90 / CRI 95 |
| Color | Cold White 10000K |
| Pure White 6500K | |
| Natural White 4000K | |
| Warm White 2000K / 2700K / 3000K | |
| Red / Green / Blue / Yellow | |
| Beam Angle | 120° |
| Driver Model | Constant Voltage |
| IP Rate | IP20 / IP65 / IP67 / IP68 |
| Working Temperature | -25°C ~ +60°C |
| Store Temperature | -25°C ~ +70°C |

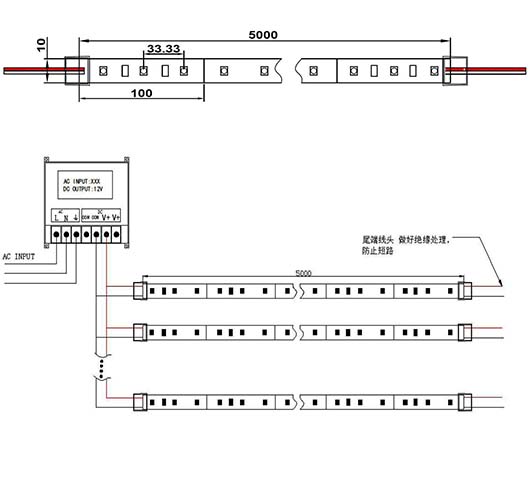

Dimension
Features
| 1. SMD5730, high lumen LED, 60-65 LM/led | |
| 2. Flexible PCB, good heat radiation, 3 LEDs/6 LEDs cuttable | |
| 3. DC12V/DC24V Low Voltage, stable and safe | |
| 4. 3M adhesive tape on the back of PCB, easy installation. | |
| 5. Nonwaterproof type and Waterproof type, both available |
